skydrive upload c# metro

2 minute read

Peter Daukintis

A preview of the latest Live SDK for Metro apps can be downloaded here https://connect.microsoft.com/site1226. This is for usage with the Windows 8 Consumer Preview (Note that the SDK is a preview version with no go-live license).

After installing you can add a reference via ‘add Reference’ > and select Windows > Extensions in the Reference Manager dialog.

In order to configure sign in on Windows Phone a client ID was required; this is different for Metro-style Apps as you now need to register your app package name and publisher identity here http://go.microsoft.com/fwlink/?LinkId=227628.

Once registered you will be provided with a new Package Name – copy this back into your app manifest.

Once this is complete, using the following code you will be able to sign in:

XAML:

add this namespace declaration

xmlns:live="using:Microsoft.Live.Controls"

and a sign in button

<p> <div style="display:inline;float:none;margin:0;padding:0;" id="scid:9ce6104f-a9aa-4a17-a79f-3a39532ebf7c:cf601697-0c47-4dc1-8af1-3fe674726b3b" class="wlWriterEditableSmartContent"> <div style="border:#000080 1px solid;color:#000;font-family:'Courier New', Courier, Monospace;font-size:10pt;"> <div style="background-color:#000000;overflow:auto;padding:2px 5px;"><live:SignInButton x:Name="btnSignin" Scopes="wl.signin wl.basic wl.skydrive wl.skydrive_update"

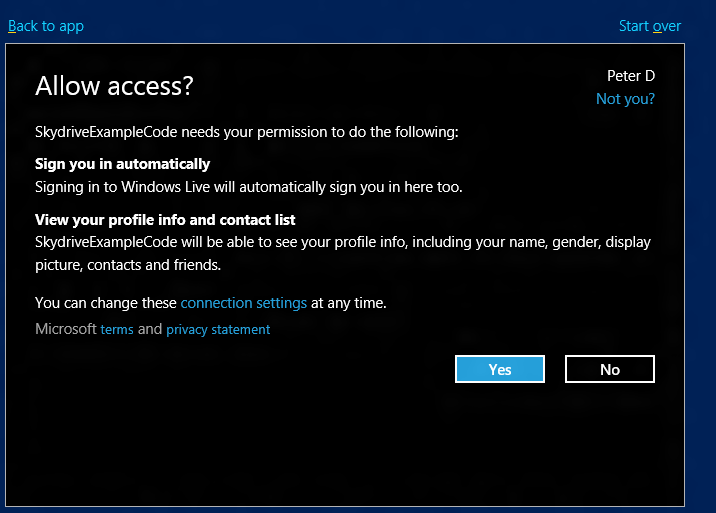

                   SessionChanged="SignInButtonSessionChanged" /></div> </div> </div> </p> <p></p> AccessRequest <p> </p> <p>The Live id session status is reported by the SessionChanged event so I handle it like this, storing the session object for later use:</p> <div style="display:inline;float:none;margin:0;padding:0;" id="scid:9ce6104f-a9aa-4a17-a79f-3a39532ebf7c:6432d340-f0bd-40f7-a6af-083dee548f4b" class="wlWriterEditableSmartContent"> <div style="border:#000080 1px solid;color:#000;font-family:'Courier New', Courier, Monospace;font-size:10pt;"> <div style="background-color:#000000;overflow:auto;padding:2px 5px;">private void SignInButtonSessionChanged(object sender, LiveConnectSessionChangedEventArgs e)
{
    if (e.Status == LiveConnectSessionStatus.Connected)
    {
        _liveConnectSession = e.Session;
        UpdateEnabled();
    }
}</div> </div> </div> <p>Next we need a way to get hold of an image so I just used the File Picker to retrieve one (I added a way to capture an image using the camera but I couldn’t test it so it probably won’t work Sad smile ) </p> <p>Here’s the code for the file picker:</p> <div style="display:inline;float:none;margin:0;padding:0;" id="scid:9ce6104f-a9aa-4a17-a79f-3a39532ebf7c:66670bfc-0131-4018-9bc9-429fe4236b29" class="wlWriterEditableSmartContent"> <div style="border:#000080 1px solid;color:#000;font-family:'Courier New', Courier, Monospace;font-size:10pt;"> <div style="background-color:#000000;overflow:auto;padding:2px 5px;">async private void ChooseFile(object sender, RoutedEventArgs e)
{
    FileOpenPicker openPicker = new FileOpenPicker();
    openPicker.ViewMode = PickerViewMode.Thumbnail;
    openPicker.SuggestedStartLocation = PickerLocationId.PicturesLibrary;
    openPicker.FileTypeFilter.Add(".jpg");
    openPicker.FileTypeFilter.Add(".jpeg");
    openPicker.FileTypeFilter.Add(".png");
    StorageFile file = await openPicker.PickSingleFileAsync();

    if (file != null)
    {
        _filename = file.Name;
        BitmapImage bitmapImage = new BitmapImage();
        _stream = (FileRandomAccessStream)await file.OpenAsync(FileAccessMode.Read);
        bitmapImage.SetSource(_stream);
        myImage.Source = bitmapImage;
        UpdateEnabled();
    }
}</div> </div> </div> <p>and finally, what it was all about, uploading to skydrive:</p> <div style="display:inline;float:none;margin:0;padding:0;" id="scid:9ce6104f-a9aa-4a17-a79f-3a39532ebf7c:49922e4d-0c95-40e3-b2c2-958eff330349" class="wlWriterEditableSmartContent"> <div style="border:#000080 1px solid;color:#000;font-family:'Courier New', Courier, Monospace;font-size:10pt;"> <div style="background-color:#000000;overflow:auto;padding:2px 5px;">private void Upload(Stream data, string filename)
{
    var liveConnectClient = new LiveConnectClient(_liveConnectSession);

    liveConnectClient.UploadCompleted += LiveConnectClientUploadCompleted;
    VisualStateManager.GoToState(this, "Busy", true);
    liveConnectClient.UploadAsync("me/skydrive", filename, true, data, data);
}</div> </div> </div> <p>Here’s the ui whilst uploading an image:</p> <p></p> <p> </p> <p>and when completed – displaying the json result returned by the upload.</p> <p> </p> <p></p> <p> </p> <p>and finally, the image on skydrive.</p> <p> </p> <p></p> <p>The project can be found here https://skydrive.live.com/redir.aspx?cid=4f1b7368284539e5&resid=4F1B7368284539E5!441&parid=4F1B7368284539E5!123</p>
